CMT24
Placements
Overall: 3RD
Acceleration: 9TH
Auto Cross: 3RD
Endurance: 6TH
Skid Pad: 6TH
Business: 3RD
Cost Report: 3RD
Design: 10TH
Efficiency: 7TH
Mechanical Systems
Inverter
Bamocar PG D3 700-400
Motor
Emrax 228 HV LC
Aerodynamics
Front Wing
Sprung, fully adjustable.
130 N of Downforce at 13m/s.
Rear Wing
Sprung, 4 elements, fully adjustable.
130 N of Downforce at 13m/s.
Side Wings
2 element wing with a Venturi Tunnel.
50 N of Downforce at 13m/s.
Undertray
Single-piece carbon construction.
40 N of Downforce at 13m/s.

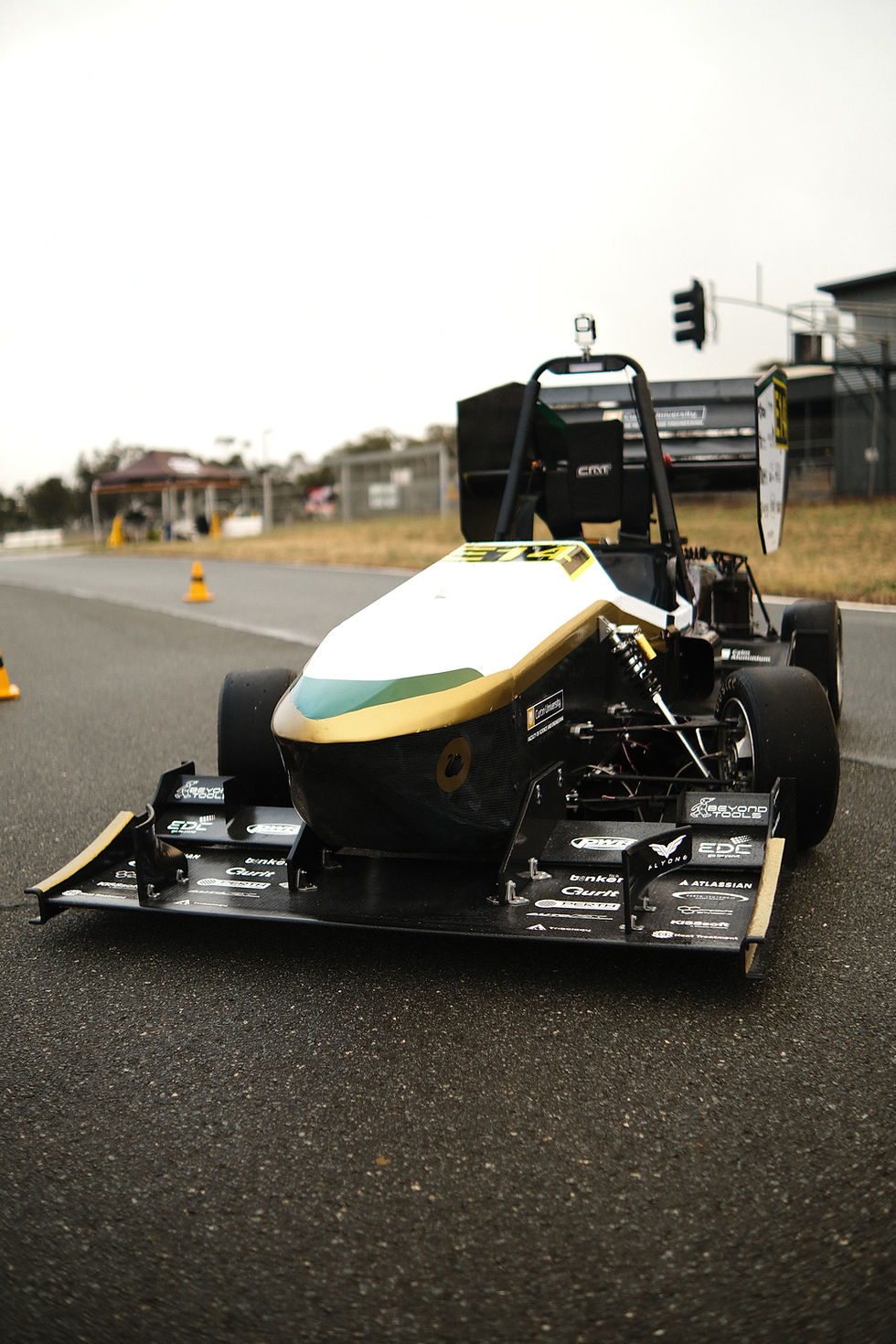

The Car
Electrical
Accumulator
504 max volt, 150 amp max discharge, enepaq modules.
DAQ
WiFi, GPS, and 3-axis accelerometer.
Dash
Aim MXM Dash with onboard data logging.
Loom
Military specification wire, concentric twisted, heat, chemical, and abrasion resistant.
Vehicle Dynamics
Brakes
Front/Rear - Wilwood - GP200.
Master cylinder - Tilton 78-Series.
Chassis
Carbon fibre monocoque.
Dampers
Ohlins TTX-25.
Steering Column
Double UJ steering.
Suspension
Direct acting at the front, bellcrank suspension at the rear.
Swaybars
Adjustable rear.
Tyres
Hoosier 16x6-10 tyres.
Unsprung
Machined aluminium uprights, spindles, and wheel centres.
The Team
