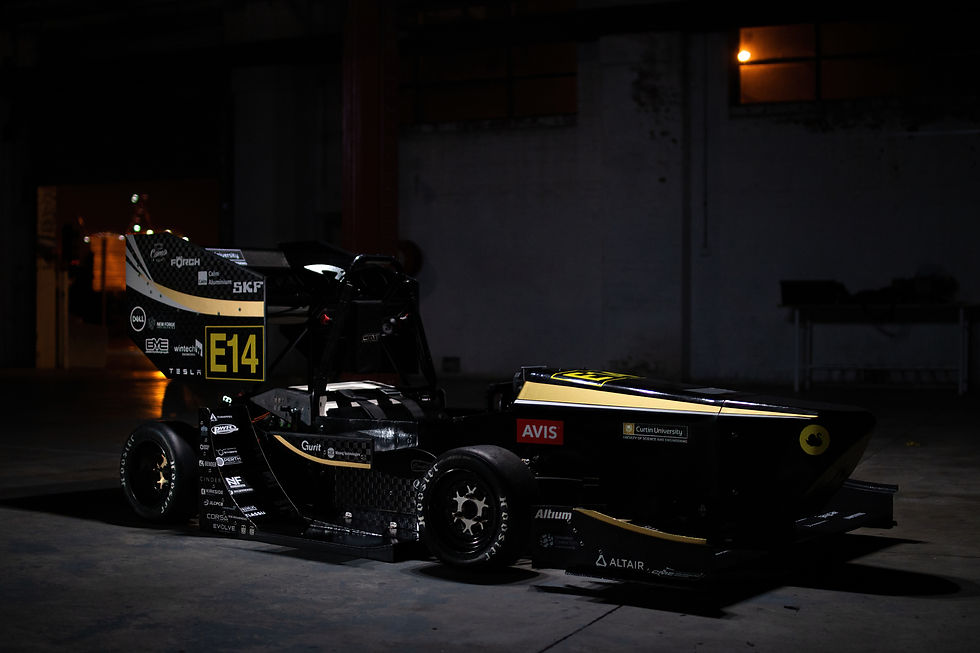

CMT22
Placements
Overall: 10TH
Acceleration: DNF
Auto Cross: 3RD
Endurance: 11TH
Skid Pad: 8TH
Business: 9TH
Cost Report: 8TH
Design: 8TH
Efficiency: DNF
Mechanical Systems
Inverter
Bamocar PG D3 700-400
Motor
Emrax 228 HV LC
Aerodynamics
Front Wing
Sprung, drop-down mainplane, fully adjustable.
192 N of Downforce.
Rear Wing
Sprung, 4 elements, fully adjustable.
228 N of Downforce.
Undertray
Single-piece carbon construction.
160 N of Downforce.
The Car
Electrical
Accumulator
504 max volt, 150 amp max discharge, enepaq modules.
DAQ
WiFi, GPS, and 3-axis accelerometer.
Dash
Aim MXM Dash with onboard data logging.
Loom
Military specification wire, concentric twisted, heat, chemical, and abrasion resistant.
Vehicle Dynamics
Brakes
Front/Rear - Wilwood - GP200.
Master cylinder - Tilton 78-Series.
Chassis
Hybrid carbon fibre monocoque and steel space frame.
Dampers
Ohlins TTX-25.
Steering Column
Single UJ steering.
Suspension
Direct acting at the front, bellcrank suspension at the rear.
Swaybars
Adjustable rear.
Tyres
Hoosier 16x7.5-10 tyres.
Unsprung
Machined aluminium uprights, spindles, and wheel centres.
