CMT19
Placements
Overall: 5TH
Acceleration: 6TH
Auto Cross: 2ND
Endurance: 7TH
Skid Pad: 2ND
Business: 5TH
Cost Report: 11TH
Design: 5TH
Efficiency: 2ND
Powertrain
Cooling
Twin rear-mounted fin core radiators.
Drivetrain
Continuously Variable Transmission (CVT) with Drexler Limited Slip Differential.
Engine
Yamaha Genesis 80fi.
Exhaust
2-1 ceramic coated with custom muffler.
Fuel System
6.4L tank with Goss GE044 pump.
Oil System
Dry sump.
Intake
Carbon plenum with 3D printed throttle body.
Aerodynamics
Bodywork
Three-piece carbon construction, resin infusion layup.
Front Wing
Sprung, hollow drop-down mainplane, fully adjustable.
Rear Wing
Unsprung, 3 elements, fully adjustable.
Undertray
Single-piece carbon construction.
The Car
Electrical & Driver Interface
Battery
4 cell Lithium Iron Phosphate (LiFePO4) 15Ah.
DAQ
WiFi, GPS, and 3-axis accelerometer.
Dash
Custom RGB dashboard with CAN integration.
Loom
Military specification wire, concentric twisted, heat, chemical, and abrasion resistant.
Pedal Box
Adjustable IGUS dual rail, aluminium pedals and baseplate.
Power Electronics
300A capable power electronics.
Seat
Carbon construction, external headrest.
Steering Column
Double UJ, rack and pinion.
Vehicle Dynamics
Brakes
Front/Rear - Wilwood - GP200.
Master cylinder - Tilton 78-Series.
Chassis
Chromoly Spaceframe.
Dampers
Ohlins TTX-25.
Suspension
Direct Acting, Double Wishbone.

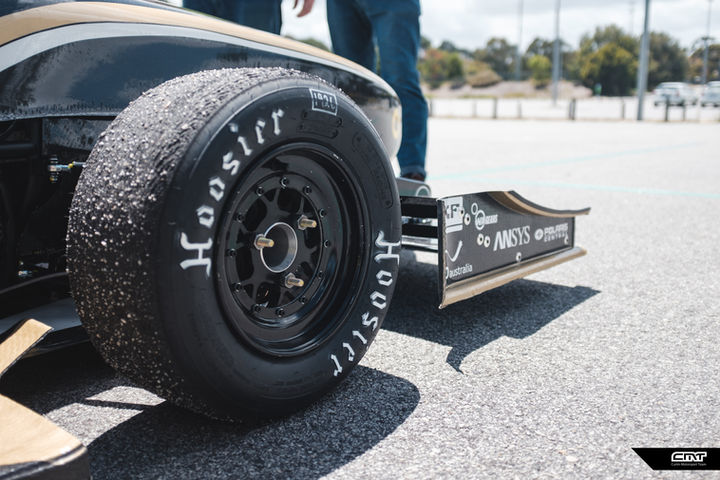

Tyres
Hoosier 18x6-10 R25B.
Unsprung
Machined aluminium uprights, spindles, and wheel centres.
Swaybars
Adjustable front and rear.
