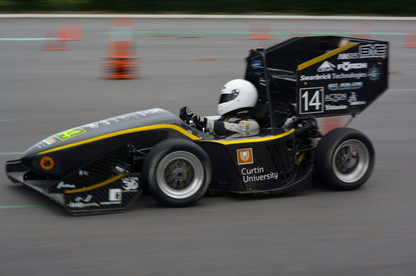

CMT16

Achievements

​

3rd Overall IC Class

2nd Autocross

Sportsmanship Award

​

Technical Specification

​

Weight  239kg

Power - 86Hp

Powertrain​

​

Engine

Honda CBR 600RR

​

Drivetrain

Drexler Limited Slip Differential

​

Fuel System

5.5L VE Commodore MRA Pump

​

Intake

Carbon plenum with 3D printed throttle body

​

Exhaust

4-2-1 ceramic coated

​

Oil System

Dry sump

​

Cooling

PWR custom built radiator, Revotec 13" High Performance fan.

​

Electrical​

​

Dash​

Assembled in-house

Features: CANbus, i2c, reprogrammable, 32 step resolution, multicolour, high intensity LEDs

​

Battery

4 cell Lithium Iron Phosphate (LiFePO4) 15Ah

​

Loom

Military specification wire, concentric twisted, heat, chemical, and abrasion resistant

​

DAQ

CANbus

​

Driver Interface

​

Seat

Single piece Carbon Fibre Construction, External headrest

​

Pedal Box

Two DryLin® T rails , Aluminium baseplate and brake pedal. Carbon accelerator pedal and pedal faces

​

Shifter

Mechanical bell-crank and linkage system

​

Steering Column

Double UJ

​

Steering Wheel

Sandwich layup of carbon with Divinycell Core

Aerodynamics

​

Total Downforce

517N

​

Total Drag

225N (at 60Km/h)

​

Bodywork

Three piece carbon construction, Wet Vac bag Layup

​

Front Wing

Semi sprung mounting, 2 elements plus mainplane, Foam Core

​

Rear Wing

Unsprung, 4 element, Foam Core

​

Undertray

single piece carbon construction. Seperate side-pod tunnels

​

Vehicle Dynamics​

​

Chassis

Steel Space-frame

​

Suspension

Double Wishbone

Front - Pull Rod

Rear - Push Rod

​

Dampers

Ohlins TTX-25

​

Wheels

13" Hoops, 7" wide

​

Tyres

Hoosier 20.5x6-13 R25B

​

Brakes

Front - Willwood GP200

Rear - Willwood PS-1

Master cylinder - Tilton 77 Series
